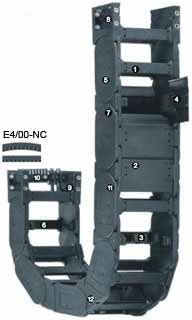

Series 400 - chain, with crossbars every link

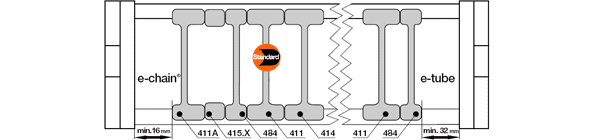

Option 1: Separators and spacers igus® separators should be fitted every 2nd chain link as standard! Note: Observe side clearance of min. 32 mm (e-tube) and min. 16 mm (e-chain®)!

56.1 Standard - for all purposes
Separator, wide base for maximum holding strength and stability in e-chains® and e-tubes.

56.2 Faster installation of cables
Separator for igus® openable crossbar 450.X. Q. One side with wide base for secure seating, opposite side is narrow for easy cable installation (light clamping). Can also be used in e-tubes.

56.3 For many thin cables
Separator with narrow base for many thin cables fitted side by side. Space-saving, secure footing – for e-chains® and e-tubes. Also available for QuickLock crossbars.

56.4 For e.g. side-mounted applications
Asymmetrical separator, results in defined clearance and spacers can be dispensed with. For e-chains® and e-tubes.

56.5 Locks in securely in 5mm increments
Notch separator for notch crossbar with scaling. Can be positioned precisely. For e-chains® and e-tubes. Recommended for side-mounted applications.

The separator 401 for e-chains® and e-tubes offers secure stability under load with its wide base, even for thick cables and hoses.

The separator 483 with narrow base for e-chains® and e-tubes for applications with many small cables that should respectively be separated from each other by a separator.

Separators (e.g. "side-mounted" application) can be fixed in position by spacers 405.XX for e-chains®. The available inner height is reduced by 2mm for each spacer. To prevent this, parts can also be installed from the outside onto the opening crossbar (not on long travels) XX = width of spacer (choice of 10, 15, 20, 30 and 40 mm)

Locking separator for e-chains® 404 - with increased holding force for applications with very high humidity or extreme loads. The increased holding strength is produced by the asymmetric teeth locking into the crossbar. Please ensure even alignment. Recommended: one locking separator per e-chain® link.

Asymmetrical separator 401A for e-chains® with 18 mm base, for the combination of spacers and separators with different widths, e.g. for side-mounted applications

405 Partial height separator(in conjunction with centre opening crossbar) For applications with many small cables. It provides the option to separate the upper and lower halves of the e-chain® independently of each other.

489.27 RollclipMinimises the abrasion of particularly sensitive hoses. Simply clamps onto the opening crossbar. The rollers compensate for movement between the hose and the e-chain®.

Roller separator 429 Used in a similar way to the rollclip. It is used like a separator.

Option 2: Shelves When many cables with different diameters are used -e-chains® and e-tubes can be divided vertically and horizontally.
igus® separators are mounted every 2nd chain link as standard!

56.1 Standard - for all purposes
Separator, wide base for maximum holding strength and stability in e-chains® and e-tubes.

56.2 Faster installation of cables
Separator for igus® openable crossbar 450.X. Q. One side with wide base for secure seating, opposite side is narrow for easy cable installation (light clamping). Can also be used in e-tubes.

56.3 For many thin cables
Separator with narrow base for many thin cables fitted side by side. Space-saving, secure footing – for e-chains® and e-tubes. Also available for QuickLock crossbars.

56.4 For e.g. side-mounted applications
Asymmetrical separator, results in defined clearance and spacers can be dispensed with. For e-chains® and e-tubes.

56.5 Locks in securely in 5mm increments
Notch separator for notch crossbar with scaling. Can be positioned precisely. For e-chains® and e-tubes. Recommended for side-mounted applications.

520.X Horizontal interior separation
Locks securely into separators at both ends, giving a fixed width. Can be used as a full-width shelf for integrated interior separation or as a shelf for modular shelving at three levels.

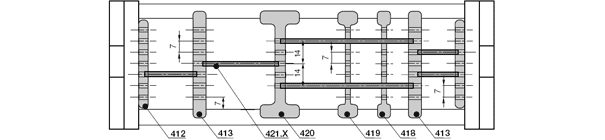

Side plates 402, middle plate 403 and shelves 420.X allow flexible partitioning Shelves of various widths can be arranged in steps of 7mm on 7 levels

Locking separator, slotted, 410, in combination with shelf

For a more divided solutionheight slot separators 408 can be used. However, these cannot be integrated into existing shelving without removing the interior separation system

The open height slot separator 409 which is open on one side, can be retrofitted without removing the existing interior separation system. For installing the open height slot separators, the top and bottom slots cannot be used for shelves

405 Partial height separator(in conjunction with centre opening crossbar) For applications with many small cables. It provides the option to separate the upper and lower halves of the e-chain® independently of each other.

489.27 RollclipMinimises the abrasion of particularly sensitive hoses. Simply clamps onto the opening crossbar. The rollers compensate for movement between the hose and the e-chain®.

Roller separator 429 Used in a similar way to the rollclip. It is used like a separator.

Strain reliefs

Strain reliefs

Design specificationFurther information on "gliding application"

• Very good wear and noise values
• Very simple, modular assembly

1. Interface connector

2. Plastic glide bar

3. Clamping shoe

4. Glide strips

5. C-profiles

Design specificationFurther information on "gliding application"

• Very good wear and noise values
• Very simple, modular assembly

1. Aluminium profiles

2. Plastic glide bar

3. Heavy-duty bracket option

4. Glide strips

5. C-profiles

6. Silencer profiles

Design specificationFurther information on "gliding application"

+ Easy assembly using installation sets
+ two-part model – adjustable from chain width
+ Very strong
+ Cost-effective
+ Large selection

Guide trough without glide bars, Part No. 94.30, guide trough with glide bars Part No. 94.31

Installation sets, Part No. 94.50. XX
